JRready ST6513+ACT-WS30 6 9 12 Pin Connector Tool Kit with Wire Stripper Electrical Power Connector Housing 14-20AWG Terminals Pin and Socket Compatible Molex MLX 084" 2.13mm Dia

JRready ST6513+ACT-WS30 6 9 12 Pin Connector Tool Kit With Wire Stripper Electrical Power Connector Housing 14-20AWG Terminals Pin and Socket Compatible Molex MLX 084" 2.13mm Dia

• HIGH QUALITY CONNECTOR: JRN001 series 6.35mm pitch connector is made of PA66 material,with a wire range of 12-24 AWG.Rated current is 13.5A MAX. The operating temperature range is from -40°C to +105°C. The flame retardant rating is UL94-V2. Under environmental conditions of 23°C ± 5°, the temperature rise at 13.5A current is no more than 30°C.The connector can be mated and unmated over 100 times.Exposure to air may result in slight color differences, but it doesn't affect the performance of the
• EASY INSTALLATION DESIGN: JRN001 series connectors are designed with advanced mating technology, ensuring a secure connection with an audible "click" to prevent incorrect mating or poor contact. Independent cavity design Prevents terminal interference during insertion and provides electrical isolation. The locking design provides a firm retention after mating, preventing accidental disconnection due to vibration or pulling forces.
• EXCELLENT CONDUCTIVE PERFORMANCE: The terminals 14-20AWG are made from tinned brass, providing excellent conductivity, oxidation resistance, and corrosion resistance. The terminal structure ensure optimal electrical contact with the connector, reducing resistance and improving conductivity. The tinned surface prevents oxidation and corrosion, extending the service life of the terminal.The kit includes a large quantity of terminals for crimping practice or as spares, providing a great user experi

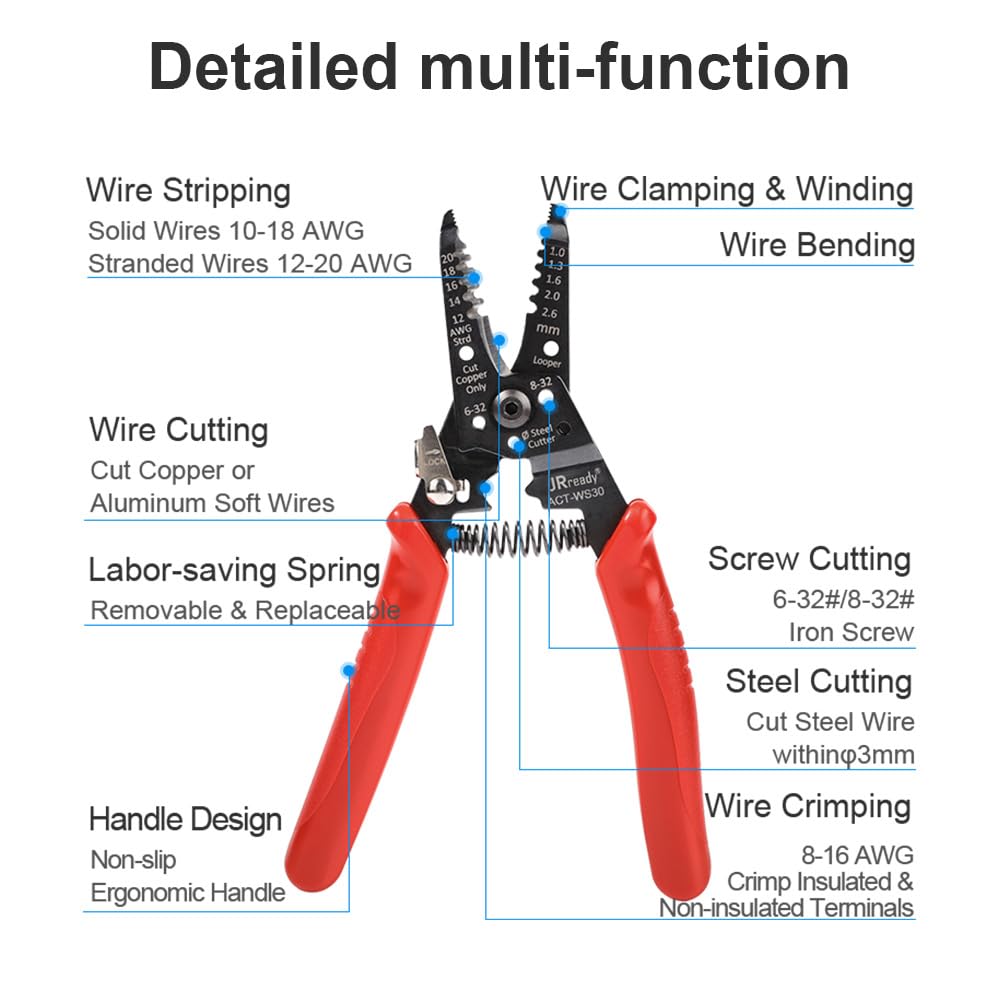

• 【ACT-WS30】Precise Stripper, stripping hole diameter is accurate and precise, not easy to break strands, which helps make high-quality wire harness. Strip solid wire 10-18 AWG, multi-stranded wire 12-20 AWG;Aperture tolerance 0.05mm, accurate wire stripping, no damage to wire core, Provide smooth, flat and clean cuts.
• COMPATIBLE with MOLEX MODELS: 6 pin connector-050841060/050842060; 9 pin connector-050841090/050842090; 12 pin connector-050841120/050842120; Contacts pin: 02082003/02082004，socket: 02081001/02081002.
