AURSINC Upgraded NanoVNA-F V3 Vector Network Analyzer, 4.3" Touchscreen 1MHz–6GHz Handheld Antenna Analyzer for Ham Radio, S-Parameters S11 S21, SWR, TDR, Phase, Delay, Smith Chart, Real-Time RTC
4.0 (23 items)
Limited Time SaleUS$178.19 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211726152 | Release Date | 2026/04/04 | List Price | US$118.80 | Model Number | 211726152 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Upgraded Performance: The NanoVNA-F V3 comes with a 4.3-inch (800×480 pixel) touchscreen display, providing a wide 1MHz to 6GHz measurement range. Optimized signal processing allows scan speeds up to 200 points/s and scan points up to 801, with an SMA connector interface for direct DUT connections. The analyzer also features a TDR function for measuring cable lengths
- Ultra Wide Frequency: Compared to NanoVNA-F V2 (50kHz-3GHz), the NanoVNA-F V3 extends the frequency range to 1MHz-6GHz, providing S11 and S21 measurements. The dynamic range for S21 is up to 65dB, while S11 reaches 50dB. With 101-801 scan points, users can store up to 12 calibration results, covering both low and high-frequency ranges. This makes the NanoVNA-F V3 a faster and more efficient antenna analyzer

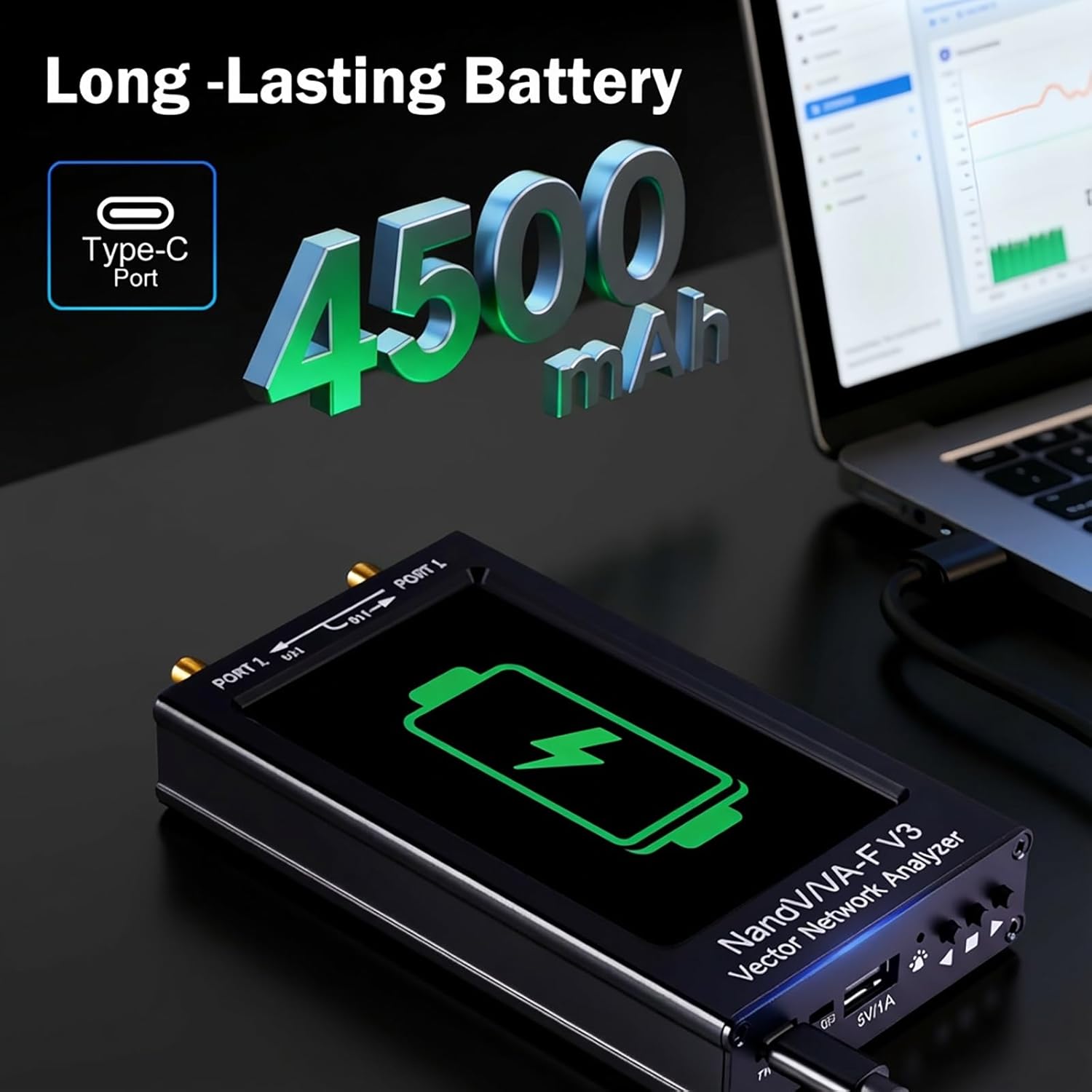

- Efficient and Worthwhile: Constructed with a metal casing to shield electromagnetic interference, the NanoVNA-F V3 is built to last. It supports automatic calibration, PC software control (compatible with NanoVNA-Saver for data transfer), and features a 4500mAh rechargeable battery with USB-C charging. Whether indoors or outdoors, it offers portability and reliability for long measurement sessions
- Multiple Measurement Functions: The NanoVNA-F V3 is perfect for testing a variety of RF components including antennas (MF/HF/VHF/UHF/SHF), filters, amplifiers, attenuators, cables, power dividers, couplers, and duplexers. It supports multiple display formats such as Log Mag, Linear Mag, Phase, Smith R+jX, Smith R+L/C, VSWR, Polar, Group delay, Resistance, Reactance, and more
- Used for Event: Perfect for ham radio operators, RF engineers, and electronics hobbyists, the NanoVNA-F V3 is ideal for use in home labs, outdoor antenna setups, and educational environments. Whether you’re optimizing your antenna or learning vector network analysis, it provides all the tools you need for accurate and efficient results
- Package: The NanoVNA-F V3 package includes: NanoVNA-F V3 host (with 4500mAh battery); SMA OPEN/SHORT/LOAD calibration kit x1; SMA-KK adapter x1; SMA-JJ adapter x1; SMA-JKW adapter x1; 20cm SMA-JJ RG405 coaxial cable x2; USB Type-C cable x1
